Description：

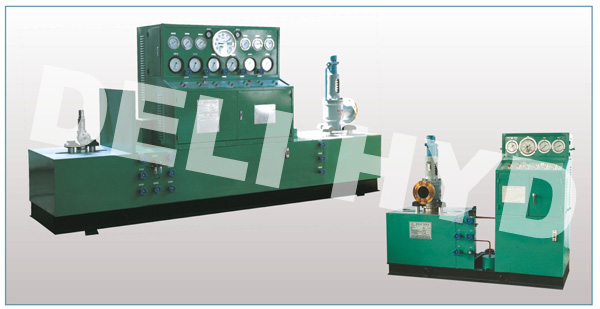

Hydraulic Safety Valve Test Bench

Model：

YFS-A

Testing Range：

DN15-300

Testing Medium：

Water,Gas or Oil

1. Summary

The hydraulic safety valve test bench of model YFS-A is used to perform checkout and leakage tests of popping pressure and blowby pressure of safety valves. The test bench is steady in performance, self-contained in outfit, and easy in operation. The main outfit of the test bench includes precise pressure gauge, bomb, subtle filter screen, gas pressure reducer and so on. In addition, all the needle valves and the pipeline of the test bench is made of stainless steel. As for the test of high pressure safety valves, the test bench can be equipped with an air booster pump of brand “Telide” which is imported from the USA.With this pump, safety valves with nominal pressure for 32.0Mpa can be tested. The test bench can be particularly designed and manufactured according to customers′ special requirements. By the way, the protective measures need to be settled by customers themselves.

2. Technical Parameters

Model& Specification	Type	Testing Range	Diameter& Quantity of Clamping Oil Cylinder	Max.Gas Pressure(MPa)	Max.Clamping Force (t)	Motor of Oil Pump	Outline Dimensions (A×W×H)
YFS-A100	Unitary	DN15-100	φ 110×2	32.0	30	2.2KW	700×2200×1600
YFS-A200	Unitary	DN50-200	φ 100×3	20.0	50	2.2KW	750×2300×1600
YFS-A300	Unitary	DN60-300	φ 140×3	10.0	90	3.0KW	850×2500×1600
YFS-A300	Set Type	DN15-100 DN80-300	φ 110×2 φ 140×3	32.0 10.0	30 90	3.0KW	850×3900×1700

3. Pressure Check List

Model YFS-A100

Nominal Diameter		Nominal Pressure MPa/class
		1.6	2.5	4.0	6.4	10.0	16.0	20.0	25.0	32.0
			150	300	400	600	900		1500
		Pressure of Hydraulic Station
in	mm	PN	PN	PN	PN	PN	PN	PN	PN	PN
1/2″	DN15	●	●	●	●	●	●	●	●	●
3/4″	DN20	●	●	●	●	●	●	●	●	●
1″	DN25	●	●	●	●	●	●	●	●	●
1¹/₄″	DN32	●	●	●	●	●	●	●	●	●
1¹/₂″	DN40	●	●	●	●	●	●	●	●	●
2	DN50	●	●	●	●	●	●	●	●	●
2¹/₂″	DN65	●	●	●	●	●	●	●	●
3″	DN80	●	●	●	●	●	●	●
4″	DN100	●	●	●	●	●

Model YFS-A200

Nominal Diameter		Nominal Pressure MPa/class
		1.6	2.5	4.0	6.4	10.0	16.0	20.0	25.0	32.0
			150	300	400	600	900		1500
		Pressure of Hydraulic Station
in	mm	PN	PN	PN	PN	PN	PN	PN	PN	PN
2″	DN50	●	●	●	●	●	●	●	●	●
2¹/₂″	DN65	●	●	●	●	●	●	●	●	●
3″	DN80	●	●	●	●	●	●	●	●	●
4″	DN100	●	●	●	●	●	●	●	●
5″	DN125	●	●	●	●	●	●
6″	DN150	●	●	●	●	●
8″	DN200	●	●	●	●

Model YFS-A300

Nominal Diameter		Nominal Pressure MPa/class
		1.6	2.5	4.0	6.4	10.0	16.0	20.0	25.0	32.0
			150	300	400	600	900		1500
		Pressure of Hydraulic Station
in	mm	PN	PN	PN	PN	PN	PN	PN	PN	PN
3″	DN80	●	●	●	●	●	●	●	●	●
4″	DN100	●	●	●	●	●	●	●	●	●
5″	DN125	●	●	●	●	●	●	●	●	●
6″	DN150	●	●	●	●	●	●	●	●
8″	DN200	●	●	●	●	●	●
10″	DN250	●	●	●	●	●
12″	DN300	●	●	●	●
